Solidigm D7-P5520 7.68TB PCIe 4.0 NVMe Enterprise SSD

Solidigm D7-P5520 7.68TB PCIe 4.0 NVMe Enterprise SSD

Solidigm D7-P5520 7.68TB PCIe 4.0 NVMe Enterprise SSD is a high-capacity, performance-optimized data center storage solution designed for AI infrastructure, cloud computing, enterprise databases, virtualization, analytics, and general-purpose server workloads.

Built with Solidigm 144-layer 3D TLC NAND, the D7-P5520 combines PCIe Gen4 x4 connectivity, NVMe 1.4, enterprise-grade reliability, and standard-endurance storage. The Solidigm D7-P5520 7.68TB PCIe 4.0 NVMe Enterprise SSD is suitable for modern data centers that require high read throughput, low latency, consistent performance, and reliable 24×7 operation.

Key Features

• Solidigm D7-P5520 Series

• Capacity: 7.68TB / 7,680GB

• PCIe 4.0 x4 interface

• NVMe 1.4

• NVMe-MI 1.1

• Solidigm 144-layer 3D TLC NAND

• Read-intensive / standard-endurance design

• Up to 1 DWPD endurance

• Up to 7,100 MB/s sequential read

• Up to 4,200 MB/s sequential write

• Up to 1.1M random read IOPS

• Up to 220K random write IOPS

• U.2 15mm and E1.S form factors available

• AES-256 encryption support

• TCG Opal 2.0 support

• Enterprise telemetry and management features

• Five-year limited warranty

The Solidigm D7-P5520 7.68TB PCIe 4.0 NVMe Enterprise SSD is optimized for mainstream enterprise workloads where predictable latency and consistent performance are important.

Product Specifications

PCIe Gen4 Performance

The Solidigm D7-P5520 7.68TB PCIe 4.0 NVMe Enterprise SSD is designed to accelerate modern enterprise and cloud workloads using PCIe Gen4 bandwidth.

The D7-P5520 family provides sequential read performance up to 7,100 MB/s and sequential write performance up to 4,200 MB/s. Random performance reaches up to approximately 1.1 million read IOPS and 220,000 write IOPS.

This performance profile makes the drive suitable for workloads involving large datasets, high levels of concurrent access, and latency-sensitive enterprise applications.

AI and GPU Server Applications

Solidigm specifically positions D7-P5520 for AI/ML, database, cloud, and enterprise applications.

The Solidigm D7-P5520 7.68TB PCIe 4.0 NVMe Enterprise SSD can be deployed in:

• AI and machine learning servers

• GPU server local storage

• Cloud computing platforms

• Enterprise databases

• Virtualization environments

• Data analytics

• Software-defined storage

• Content delivery systems

• General-purpose enterprise servers

• Data center storage platforms

For AI infrastructure, the drive can be used for datasets, model files, application data, checkpoints, and other storage workloads that benefit from high sequential and random read performance.

AI Storage and NVIDIA GDS

Solidigm has also tested the 7.68TB U.2 D7-P5520 in AI systems using NVIDIA GPUDirect Storage.

In Solidigm testing, the 7.68TB PCIe Gen4 U.2 version achieved more than 6.5 GiB/s sequential throughput at larger block sizes while reducing CPU utilization when using a direct GPU-to-storage data path.

This makes the D7-P5520 relevant for GPU-based workloads where efficient movement of large datasets between storage and accelerators is important.

Standard-Endurance Design

The Solidigm D7-P5520 7.68TB PCIe 4.0 NVMe Enterprise SSD is positioned as a standard-endurance drive with up to 1 DWPD over five years.

This makes it well suited for read-intensive and mainstream enterprise workloads where reads significantly outweigh sustained write traffic.

For environments with substantially heavier write workloads, Solidigm D7-P5620 provides a higher-endurance class of up to 3 DWPD.

Enterprise Management Features

D7-P5520 includes enterprise management capabilities designed for modern server and cloud infrastructure.

Supported features include NVMe-MI 1.1, advanced telemetry logging, dynamic namespaces, device self-test, PCIe management messaging, and OCP cloud log support.

These capabilities can help data center administrators monitor drive health and manage large-scale storage deployments more effectively.

Security Options

The Solidigm D7-P5520 7.68TB PCIe 4.0 NVMe Enterprise SSD is available in multiple security configurations.

Depending on the exact product code, options can include:

• Generic non-Opal

• TCG Opal 2.0

• AES-256 encryption

• FIPS-certified U.2 variants

Exact security configuration should always be confirmed using the complete Solidigm product code before procurement.

Available Form Factors

The 7.68TB D7-P5520 is available in more than one enterprise form factor.

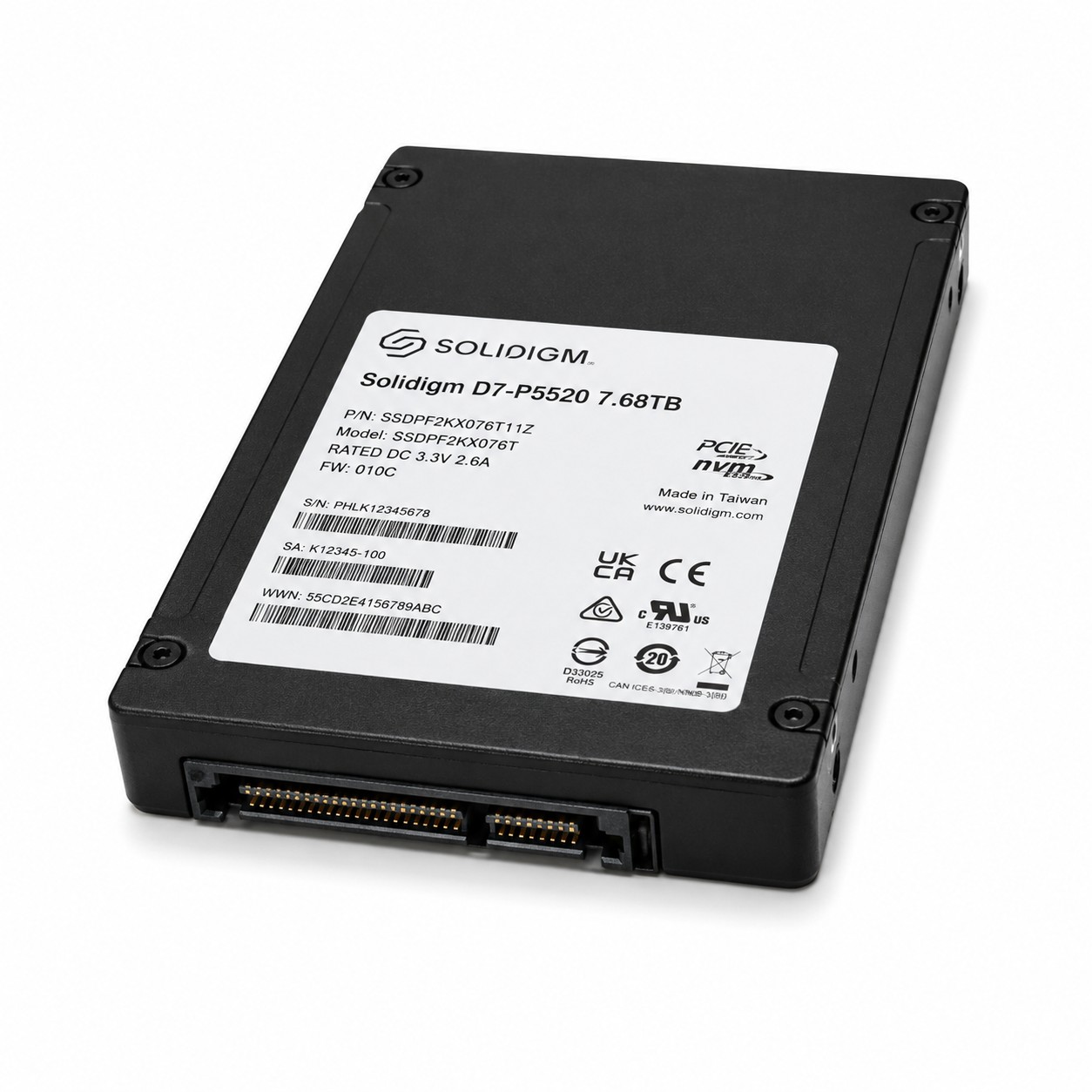

U.2 15mm

Designed for conventional 2.5-inch enterprise server and storage bays. A common 7.68TB non-Opal U.2 product code is SSDPF2KX076T11Z.

E1.S

Designed for modern high-density server architectures. Solidigm offers 7.68TB E1.S configurations in the D7-P5520 family.

Because the same capacity is offered in multiple configurations, buyers should confirm the full product code before ordering.

About Us

Why Choose Solidigm D7-P5520 7.68TB?

The Solidigm D7-P5520 7.68TB PCIe 4.0 NVMe Enterprise SSD combines high-capacity TLC NAND storage, PCIe Gen4 performance, enterprise management features, and standard-endurance reliability.

It is suitable for customers requiring high-density enterprise NVMe storage, AI and GPU server storage, cloud infrastructure, database acceleration, low-latency server storage, and reliable 24×7 operation.

FAQ

Q: What is Solidigm D7-P5520 7.68TB?

A: Solidigm D7-P5520 7.68TB is a PCIe Gen4 NVMe enterprise SSD designed for cloud, AI, database, virtualization, and mainstream data center workloads.

Q: What interface does D7-P5520 use?

A: The D7-P5520 uses PCIe 4.0 x4 and supports NVMe 1.4.

Q: What is the maximum sequential read speed?

A: The D7-P5520 family supports sequential read performance up to approximately 7,100 MB/s.

Q: What is the maximum sequential write speed?

A: Sequential write performance reaches up to approximately 4,200 MB/s.

Q: What is the endurance rating?

A: D7-P5520 is rated for up to 1 DWPD over a five-year enterprise workload period.

Q: What form factors are available for 7.68TB?

A: The 7.68TB capacity is available in U.2 15mm and E1.S configurations.

Q: Is Solidigm D7-P5520 suitable for AI servers?

A: Yes. Solidigm positions the D7-P5520 for AI/ML, cloud, database, and enterprise workloads, and has also tested the 7.68TB U.2 model in NVIDIA GPUDirect Storage environments.

Q: What is the common U.2 product code?

A: A current Solidigm 7.68TB U.2 non-Opal product code is SSDPF2KX076T11Z.

Q: Can CubeCore supply Solidigm D7-P5520 7.68TB in bulk?

A: Yes. CubeCore supports tested SSD supply, exact product-code verification, form-factor confirmation, bulk procurement, project-based sourcing, and global delivery.
