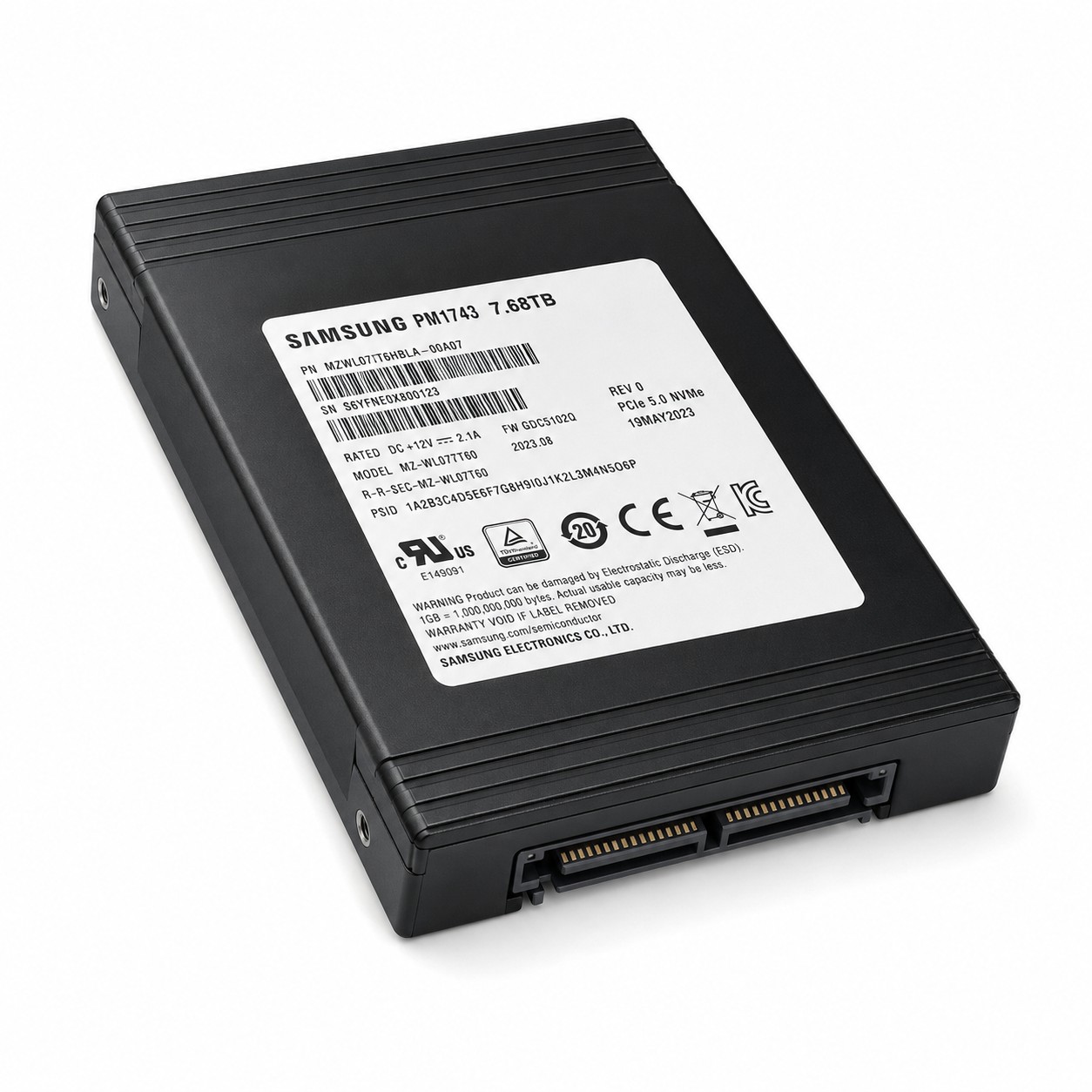

Samsung PM1743 7.68TB PCIe 5.0 NVMe Enterprise SSD
Samsung PM1743 7.68TB PCIe 5.0 NVMe Enterprise SSD is a next-generation enterprise storage solution designed for AI servers, GPU clusters, high-performance computing, cloud infrastructure, enterprise databases, virtualization, and mission-critical data center workloads.
Built around Samsung PCIe Gen5 enterprise SSD technology, PM1743 combines PCIe 5.0 x4 connectivity, high-performance Samsung V-NAND, dual-port capability, enterprise power-loss protection, and 1 DWPD endurance. The Samsung PM1743 7.68TB PCIe 5.0 NVMe Enterprise SSD provides significantly higher read throughput than previous PCIe Gen4 enterprise SSDs.
Key Features
-
Samsung PM1743 Series
-
Capacity: 7.68TB / 7,680GB
-
Enterprise NVMe SSD
-
PCIe 5.0 x4 interface
-
2.5-inch and E3.S form factors available
-
Dual-port support
-
Up to 14,000 MB/s sequential read
-
Up to 6,000 MB/s sequential write for 7.68TB
-
Up to 2.5M random read IOPS
-
Up to 300K random write IOPS for 7.68TB
-
1 DWPD endurance
-
5-year enterprise endurance class
-
2.5 million hour MTBF
-
Enterprise Power Loss Protection
-
LDPC ECC
-
TCG Opal 2.01 security
-
Designed for AI, HPC, cloud, and enterprise servers
The Samsung PM1743 7.68TB PCIe 5.0 NVMe Enterprise SSD is suitable for organizations upgrading high-performance server platforms from PCIe Gen4 storage to PCIe Gen5 infrastructure.
Product Specifications
| Item | Specification |
|---|---|
| Brand | Samsung |
| Series | PM1743 |
| Capacity | 7.68TB / 7,680GB |
| Product Type | Enterprise NVMe SSD |
| Interface | PCIe 5.0 x4 |
| Form Factors | 2.5-inch / E3.S |
| 2.5-inch Interface | U.2 / U.3 Configuration |
| Sequential Read | Up to 14,000 MB/s |
| Sequential Write | Up to 6,000 MB/s |
| Random Read | Up to 2,500K IOPS |
| Random Write | Up to 300K IOPS |
| Endurance | 1 DWPD |
| Warranty Class | 5 Years |
| MTBF | 2.5 Million Hours |
| Dual Port | Supported |
| Power Loss Protection | Supported |
| Security | TCG Opal 2.01 |
| Application | AI Server, GPU Server, HPC, Cloud, Data Center |
PCIe Gen5 Performance
The Samsung PM1743 7.68TB PCIe 5.0 NVMe Enterprise SSD is designed to take advantage of next-generation PCIe Gen5 server platforms.
For the 7.68TB configuration, Samsung specifies sequential read performance of up to 14,000 MB/s and sequential write performance of up to 6,000 MB/s.
Random read performance reaches up to approximately 2.5 million IOPS, while random write performance reaches up to approximately 300,000 IOPS.
This makes PM1743 particularly suitable for workloads requiring extremely high read bandwidth and low-latency access to large datasets.
AI Server and GPU Infrastructure Applications
Typical applications include:
-
AI training servers
-
GPU computing clusters
-
Large language model infrastructure
-
High-performance computing
-
Enterprise databases
-
Cloud computing platforms
-
Virtualization environments
-
Distributed storage
-
Software-defined storage
-
Data analytics
-
Mission-critical enterprise systems
-
High-performance data centers
For AI infrastructure, the Samsung PM1743 7.68TB PCIe 5.0 NVMe Enterprise SSD can provide high-speed local or shared storage for training datasets, model checkpoints, inference data, application files, and other storage-intensive workloads.
High-Capacity PCIe Gen5 Storage
The 7.68TB capacity provides a strong balance between storage density and high PCIe Gen5 performance.
Compared with lower-capacity models, 7.68TB allows GPU servers and enterprise systems to store larger datasets locally while reducing the number of SSDs required to reach a target storage capacity.
This can improve storage density in AI servers, HPC nodes, database platforms, and enterprise storage systems.
Dual-Port Enterprise Reliability
One of the important enterprise features of PM1743 is dual-port operation.
The Samsung PM1743 7.68TB PCIe 5.0 NVMe Enterprise SSD can support redundant storage paths in compatible enterprise systems. If one data path becomes unavailable, the second path can help maintain access to the drive.
This capability is particularly valuable for mission-critical storage systems where continuous availability is important.
Enterprise Power Loss Protection
PM1743 incorporates enterprise Power Loss Protection to help protect in-flight data during unexpected power interruptions.
Combined with enterprise error correction, telemetry, and data protection capabilities, this makes the drive suitable for continuous data center operation.
Performance and Endurance
The 7.68TB PM1743 is rated at 1 DWPD over its enterprise endurance period.
This workload class is suitable for read-intensive and mainstream enterprise environments requiring very high read throughput combined with predictable write endurance.
For extremely write-intensive applications, a higher-DWPD enterprise SSD may be more appropriate.
PM1743 7.68TB Performance
| Metric | 7.68TB PM1743 |
|---|---|
| Sequential Read | Up to 14,000 MB/s |
| Sequential Write | Up to 6,000 MB/s |
| Random Read | Up to 2,500K IOPS |
| Random Write | Up to 300K IOPS |
| Endurance | 1 DWPD |
| MTBF | 2.5 Million Hours |
Actual performance can vary depending on server configuration, workload, firmware, interface mode, and operating environment.
PM1743 vs PM1733
The Samsung PM1743 7.68TB PCIe 5.0 NVMe Enterprise SSD represents a major generational upgrade over the PCIe Gen4 PM1733.
| Specification | PM1733 7.68TB | PM1743 7.68TB |
|---|---|---|
| PCIe Generation | PCIe 4.0 | PCIe 5.0 |
| Sequential Read | Up to 7,000 MB/s | Up to 14,000 MB/s |
| Sequential Write | Up to 3,800 MB/s | Up to 6,000 MB/s |
| Random Read | Up to 1.45M IOPS | Up to 2.5M IOPS |
| Random Write | Up to 135K IOPS | Up to 300K IOPS |
| Endurance | 1 DWPD | 1 DWPD |
PM1743 approximately doubles the maximum sequential read bandwidth available from the previous PCIe Gen4 generation.
Available Form Factors
Samsung PM1743 is available in multiple enterprise form factors.
2.5-inch
The 2.5-inch configuration is intended for compatible enterprise server and storage backplanes and supports dual-port operation.
E3.S
The EDSFF E3.S version provides a slimmer enterprise form factor designed for high-density next-generation server systems.
Exact form factor and full Samsung part number should always be confirmed before procurement.
About Us
Why Choose Samsung PM1743 7.68TB?
The Samsung PM1743 7.68TB PCIe 5.0 NVMe Enterprise SSD combines high-capacity enterprise storage, PCIe Gen5 bandwidth, strong random performance, dual-port reliability, and enterprise Samsung storage technology.
It is suitable for customers requiring:
-
7.68TB enterprise NVMe storage
-
PCIe Gen5 server performance
-
Up to 14,000 MB/s read bandwidth
-
AI and GPU server storage
-
HPC infrastructure
-
Enterprise databases
-
Dual-port high availability
-
Power Loss Protection
-
24×7 enterprise operation
FAQ
Q: What is Samsung PM1743 7.68TB?
A: Samsung PM1743 7.68TB is a PCIe Gen5 enterprise NVMe SSD designed for AI servers, HPC systems, cloud infrastructure, enterprise databases, and high-performance data centers.
Q: What interface does Samsung PM1743 use?
A: PM1743 uses PCIe 5.0 x4.
Q: What is the maximum read speed?
A: The 7.68TB PM1743 supports sequential read speeds up to approximately 14,000 MB/s.
Q: What is the maximum write speed?
A: Samsung specifies up to approximately 6,000 MB/s sequential write performance for the 7.68TB configuration.
Q: What is the random read performance?
A: The 7.68TB PM1743 supports up to approximately 2.5 million random read IOPS.
Q: What is the random write performance?
A: The 7.68TB version supports up to approximately 300,000 random write IOPS.
Q: What is the endurance rating?
A: PM1743 is rated at 1 DWPD for its five-year enterprise endurance class.
Q: Does Samsung PM1743 support dual-port operation?
A: Yes. PM1743 supports dual-port operation for increased availability in compatible enterprise systems.
Q: What form factors are available?
A: Samsung offers PM1743 in 2.5-inch and E3.S configurations.
Q: Is Samsung PM1743 suitable for AI servers?
A: Yes. PCIe Gen5 bandwidth, high random read performance, and 7.68TB capacity make it well suited for AI servers, GPU clusters, HPC systems, and data-intensive enterprise workloads.
Q: Can CubeCore supply Samsung PM1743 7.68TB in bulk?
A: Yes. CubeCore supports tested SSD supply, exact model verification, form factor confirmation, bulk procurement, project-based sourcing, and global delivery.
